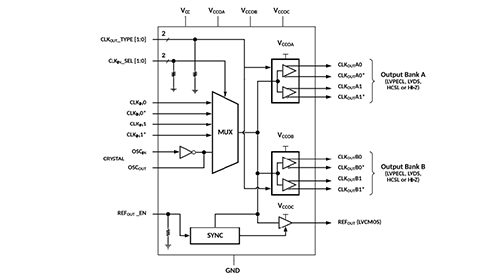

• Inputs can be two differential input clocks, or a crystal/crystal oscillator input

• Crystal frequencies from 8 MHz to 50 MHz are supported

• Support max input and output clock frequency of 2.1 GHz.

• Support PCI-e Gen 1 to Gen 5

• Output Enable (OE) signal for outputs synchronization

• Ultra low Output-to-Output skew: 30 ps typ

• Target: AEC-Q100 qualified, Automotive Grade 2 (-40℃ to +105℃)

• Automotive Applications

• Non-Terrestrial Networks (NTN)

• Low Earth Orbit (LEO) broadband communication

• Drone Application

• Medical Application

• Low additive jitter and low output-to-output skew ideal for jitter/phase sensitive applications

• Wide operation voltage for design compatibility

• Low power consumption ideal for portable and high density applications
