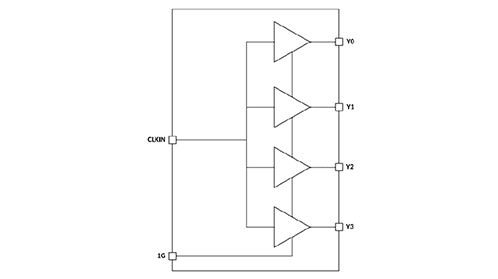

• High-performance 1:4 LVCMOS clock buffer

• Very low output-to-output skew: < 50 ps

• Very low additive jitter: < 50 fs

• Supply voltage: 1.8 V to 3.3 V

• Support 3.3V tolerant input clock

• FMAX = 200 MHz

• Integrated serial termination for 50 Ω channel

• Packaged in 8-pin, 2 × 2 mm DFN packages

• AEC-Q100 qualified, Automotive Grade 1 (-40℃ to +125℃)

• Automotive Applications

• Non-Terrestrial Networks (NTN)

• Low Earth Orbit (LEO) broadband communication

• Drone Application

• Medical Application

• Low additive jitter and low output-to-output skew ideal for jitter/phase sensitive applications

• Wide operation voltage for design compatibility

• Low power consumption ideal for portable and high density applications
