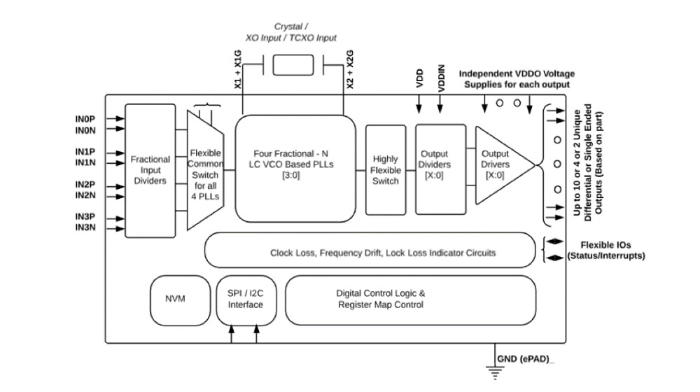

• 4 programmable clock outputs can be generated from a crystal input or any of 4 input reference clocks

• Programmable outputs compatible with LVDS, LVPECL, LVCMOS, CML, and HCSL with programmable signal amplitude

• Independent output supply pins: 3.3 V, 2.5 V, or 1.8 V

• Digitally Controlled Oscillator (DCO) Mode: Frequency step resolution 0.001 ppt, for frequency margining applications

• Internal ZDB Mode with <0.5 ns Input-to-Output delay variation

• OTN/PTN

• BBU/RRU

• 100/200/400G/800G Switch/Router with SyncE support

• Small Cell

• Acceleration card

• Lower phase noise minimizes bit error rate and increases design margin in 56G/112G PAM4 I/O systems

• Better signal integrity increases design margin and leads to faster time to market

• Higher clock tree integration reduces system BOM and increases overall reliability
