AU6315Front-End-Module
  • Power:
    20W
  • Frequency Band:
    2.3GHz~2.6GHz
  • Package:
    6*6mm
  • Cross Reference:
    ADI5519
AU6315
Features

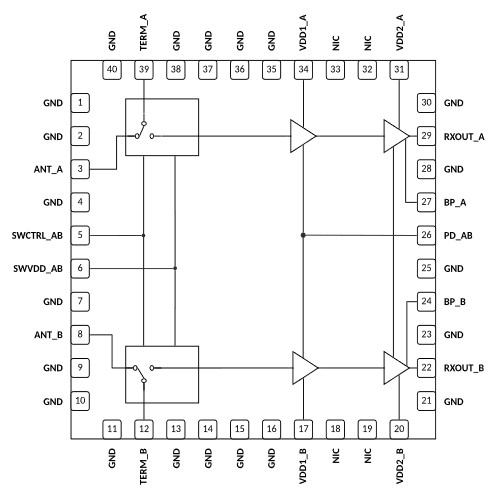

• Dual Channels 2.3GHz~2.6GHz 20W FEM

• Low noise figure 1.0 dB typical at 2.6 GHz

• Low insertion loss: 0.5 dB typical at 2.6 GHz

• Single event (<10 sec operation) LTE average power (9 dB PAR): 46 dBm

• Low supply current 100 mA typical at 5 V

Applications

• Telecom Market

• TDD-Based communication systems
