AU8013Linear Regulator (LDO)
  • Noise:
    4.3μV noise
    over 10Hz to 100kHz
  • PSRR:
    38dB PSRR at 1MHz
  • Dropout:
    100mV max Dropout
    at 2A load current
  • Accuracy:
    1% accuracy over line,
    load and temperature
AU8013
Features

• Output Voltage Noise:

    -4.3 μV RMS at 0.8 V Output

    -7.6 μV RMS at 5.0 V Output

• Input Voltage Range:

    -1.4 V to 6.5 V without BIAS

    -1.1 V to 6.5 V with BIAS

• Two Output Voltage Range:

    -0.8 V to 5.15 V (Set by resistor divider)

    -0.8 V to 3.95 V (Set via programming pins)

• Excellent PSRR of 38 dB at 1 MHz

• Adjustable Soft-Start In-Rush Contro


Applications

• Telecom MIMO RF front end components

• Digital loads: SerDes, FPGAs and DSPs

• High-speed analog circuits: VCO, ADC, DAC, and LVDS

Advantages

• Stable with low ESR ceramic capacitor

• Low noise

• Excellent Load Transient Response

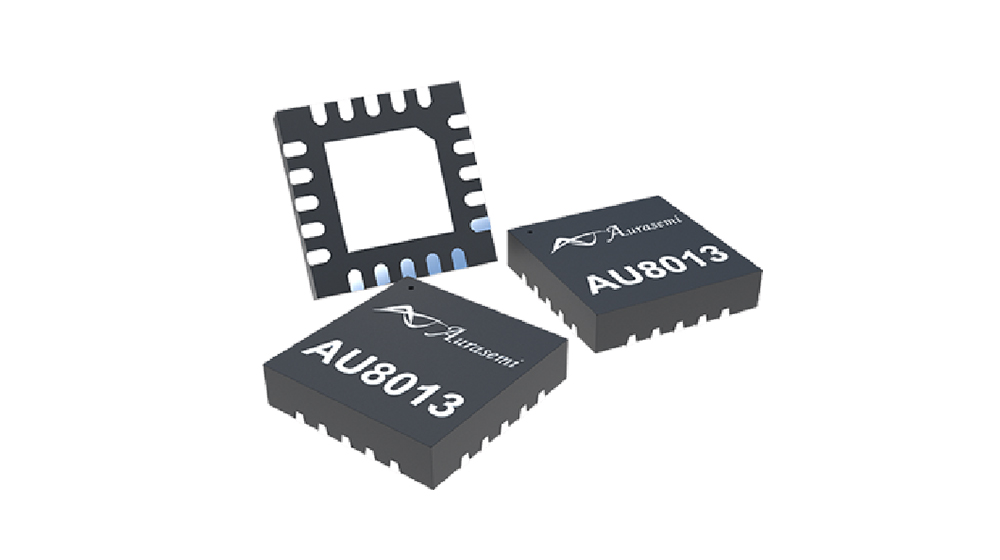

• Compact package 20-Pin QFN to save board space and cost
