AU8010Linear Regulator (LDO)
  • Noise:
    6μV noise over 10Hz to 100kHz
  • PSRR:
    38dB PSRR at 1MHz
  • Dropout:
    75mV max Dropout
    at 1A load current
  • Accuracy:
    1.5% accuracy over line,
    load and temperature
AU8010
Features

• Output Voltage Noise: 6 μV RMS at 0.8 V Output

• Input Voltage Range: 2.2 V to 6.5 V

• Output Voltage Range: 0.8 V to 6 V (Set by resistor divider)

• Excellent PSRR of 38 dB at 1 MHz, 57 dB at 100 kHz

• Adjustable Soft-Start In-Rush Control

Applications

• Telecom MIMO RF front end components

• Digital loads: SerDes, FPGAs and DSPs

• High-speed analog circuits: VCO, ADC, DAC, and LVD

Advantages

• Stable with low ESR ceramic capacitor

• Low noise

• Excellent Load Transient Response

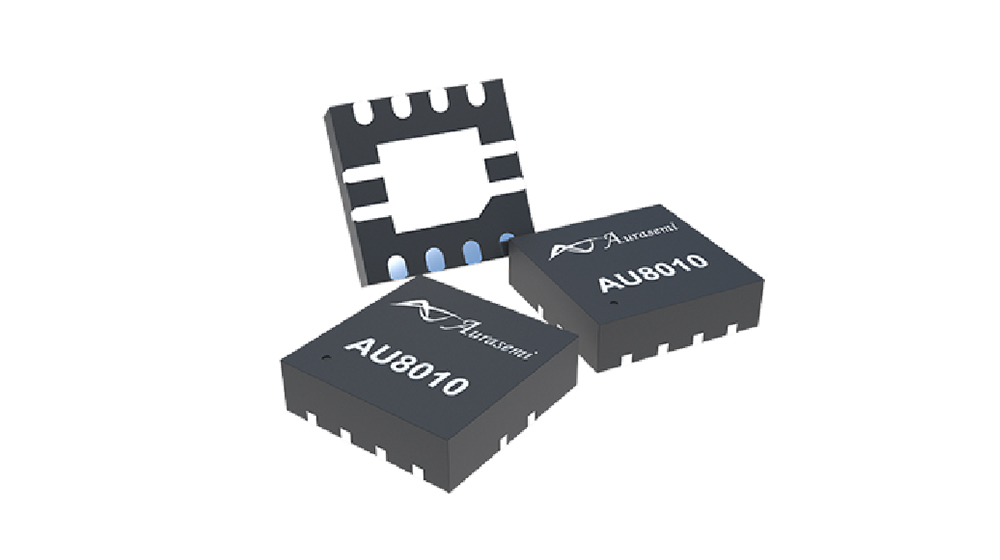

• Compact package 8-Pin DFN to save board space and cost
