The AU4851 is a smart power stage designed to work with Aurasemi’s controller to achieve a high-density multiphase solution. It delivers 30 A of continuous output current over a wide input supply range.

Monolithic Integration and advanced packaging technology have offered high efficiency due to optimal dead time and parasitic inductance reduction.

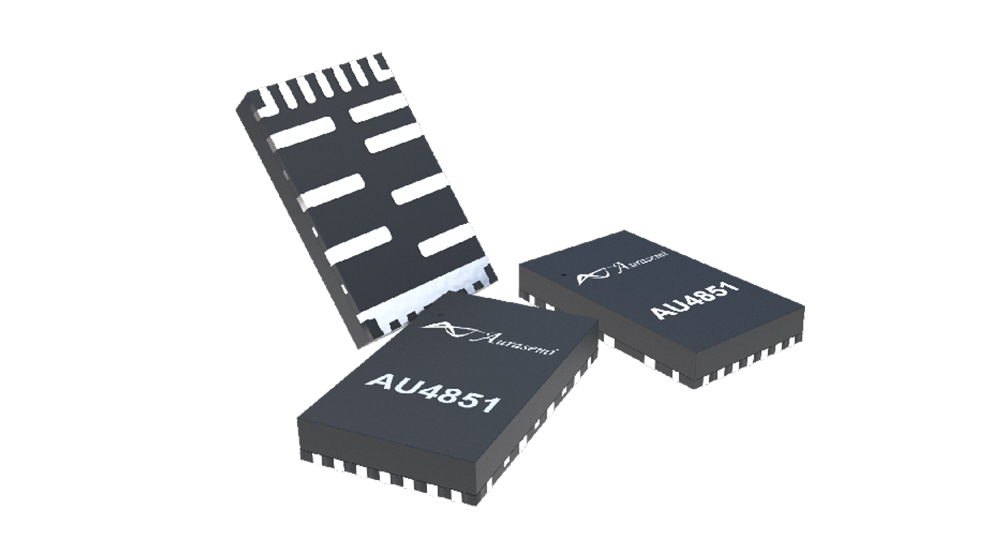

The AU4851 is available in a very small 3 mm × 5 mm FC TQFN and can operate from 100 kHz to 2 MHz.

This device includes fault protection circuits for over temperature, over current, VCC and VIN undervoltage lockout (UVLO). The AU4851 is ideal for notebook applications with high efficiency and small size.

• Monolithic Smart Power Stage

• Compliant to Intel DrMOS V4.0 Spec.

• 30 A output current capability

• Accepts 3.3 V tri-state PWM signal

• Built-in switch for bootstrap

• Accurate current reporting

• Accurate temperature reporting

• Over current Protection

• Over Temperature Protection

• Used for multi-phase operation

• 3 mm × 5 mm, 21-Pin, TQFN Package

• Notebook core voltage

• Graphic card core regulators

• Power modules
